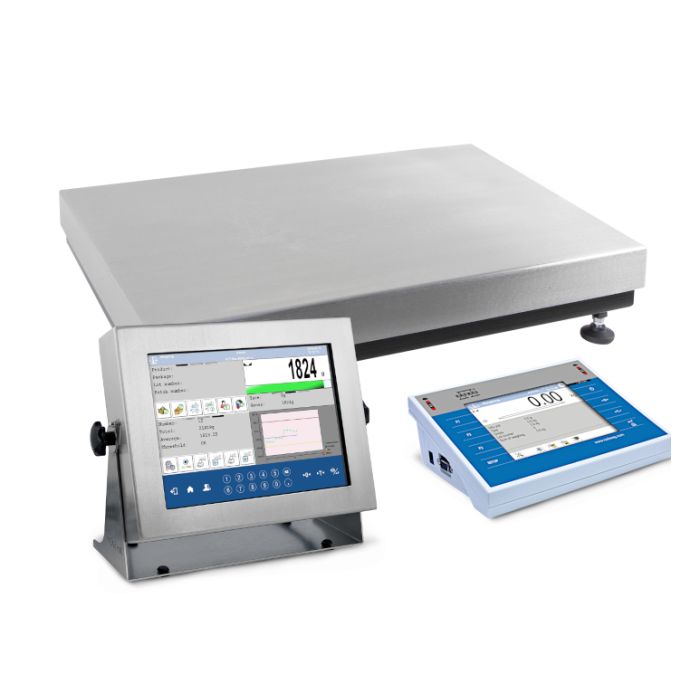

PUE 7.1.32.HRP High Resolution Scale
The HRP high resolution scales feature a cutting-edge measuring system based on MONOBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.
High Resolution Scale
The HRP high resolution scales feature a cutting-edge measuring system based on MONOBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10. The PUE 7.1 terminal has:- 5.7-inch color resistive display
- a touch-sensitive keyboard
- ABS plastic housing
- IP 43 protection rating
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®®,
- optional additional modules: additional A/D converter module DP6.
- 10.1-inch color graphic display
- touchscreen keyboard
- stainless steel housing
- IP 68/69 degree of protection
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
- optional additional modules: Wi-Fi®®, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.
Datasheet
| Maximum capacity [Max] |
16 kg |
| Minimum load |
5 g |
| Preload range |
4 kg |
| Readability [d] |
0.1 g |
| Tare range |
-16 kg |
| Repeatability |
0.1 g |
| Linearity |
±0.1 g |
| Stabilization time |
2 s |
| Adjustment |
internal (automatic) |
| Display |
5.7” Resistive Color Touchscreen |
| Weighing pan dimensions |
360×280 mm |
| Device dimensions |
360×313×170 mm |
| Packaging dimensions |
560×473×360 mm |
| Net weight |
24.7 kg |
| Gross weight |
28.7 kg |
| Protection class |
IP 66 / 67 construction, IP 43 terminal |
| Construction |
aluminum |
| Weighing pan material |
Stainless steel AISI304 |
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Power supply |
100 – 240 V AC 50/60 Hz |
| Operating temperature |
+10 – +40 °C |
| Relative humidity |
15% – 80% |
| Maximum capacity [Max] |
32 kg |
| Minimum load |
5 g |
| Preload range |
4 kg |
| Readability [d] |
0.1 g |
| Tare range |
-32 kg |
| Repeatability |
0.1 g |
| Linearity |
±0.3 g |
| Stabilization time |
2 s |
| Adjustment |
internal (automatic) |
| Display |
5.7” Resistive Color Touchscreen |
| Weighing pan dimensions |
360×280 mm |
| Device dimensions |
360×313×170 mm |
| Packaging dimensions |
560×473×360 mm |
| Net weight |
24.7 kg |
| Gross weight |
28.7 kg |
| Protection class |
IP 66 / 67 construction, IP 43 terminal |
| Construction |
aluminum |
| Weighing pan material |
Stainless steel AISI304 |
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Power supply |
100 – 240 V AC 50/60 Hz |
| Operating temperature |
+10 – +40 °C |
| Relative humidity |
15% – 80% |
Q&A
What is this product primarily used for?
This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.
Which industries benefit most from this equipment?
Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.
How does it compare to similar models?
It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
| Brands | Radwag |
|---|---|
| Price | CA$10,502.32 |
