Radwag balances

WE ARE RADWAG AUTHORIZED DISTRIBUTOR
OFFERING TECH SUPPORT & CALIBRATION SERVICES • EXPERT PROJECT GUIDANCE

Radwag specializes in microbalances and analytical balances for extremely demanding laboratory environments

Known for their innovation, Radwag balances automatic internal calibration, environmental condition monitoring (temperature, humidity, and pressure), and advanced connectivity options, including USB, Ethernet, and Wi-Fi, for seamless data transfer and integration. Their built-in databases, audit trails, and compliance with standards such as 21 CFR Part 11 make them especially suitable for regulated industries requiring full traceability and data integrity.

COMPARE RADWAG BALANCE SERIES

RADWAG SERIES	BEST SUITED FOR	AVAILABLE READABILITY	CAPACITY RANGE ON OUR SITE	CHOOSE IT WHEN
AS Series	Laboratory analytical weighing requiring an unusually high capacity	1 mg	3100 g	You need milligram readability while weighing samples substantially heavier than those handled by typical analytical balances
PS Series	Laboratory, formulation and quality-control precision weighing	1 mg or 10 mg; dual-range models available	Up to 10,100 g	You need a laboratory precision balance with a particularly broad selection of capacities and Radwag terminal/platform options
5Y.PM Series	High-capacity precision weighing, laboratory and production applications	0.01 g to 0.2 g	10 kg to 120 kg	You need substantially more capacity than a conventional laboratory balance while maintaining relatively fine readability
C32.PM Series	Production and higher-capacity precision weighing	0.01 g to 1 g	10 kg to 60 kg	You need a higher-capacity precision platform for production or process-oriented weighing
WLC Series	General laboratory, production and industrial precision weighing	0.001 g to 2 g depending on configuration	200 g to 120 kg	You need a highly configurable precision balance family spanning benchtop through higher-capacity applications
WTC Series	Routine compact precision weighing	0.001 g to 0.1 g	200 g to 3100 g	You need a straightforward compact balance for everyday precision weighing rather than a more advanced laboratory platform
WLY Series	Production, formulation and general higher-capacity precision weighing	0.01 g or 0.1 g	1 kg to 20 kg	You need a production-oriented precision balance covering loads beyond typical small laboratory samples
HY10.HRP Series	Industrial applications requiring unusually high resolution at large capacities	0.02 g to 10 g depending on capacity	10 kg to 2000 kg	You need high-resolution weighing at capacities far beyond conventional laboratory balances
PUE 7.1.HRP Series	High-capacity industrial and process weighing	0.1 g to 20 g depending on capacity	16 kg to 2000 kg	You need a high-resolution industrial weighing system for substantially larger loads

Precision balances

Lower-capacity models are ideal for detailed sample preparation and routine lab work where accuracy to the milligram is essential, while higher-capacity versions support bulk weighing and production environments without sacrificing precision. Models in this range differ in stabilization time, display resolution, and internal calibration options, allowing users to choose between fast-response units for high-throughput tasks or more advanced systems with enhanced repeatability and environmental compensation. Whether used in quality control, formulation, or educational laboratories, Radwag precision balances provide reliable performance tailored to both light and intensive applications.

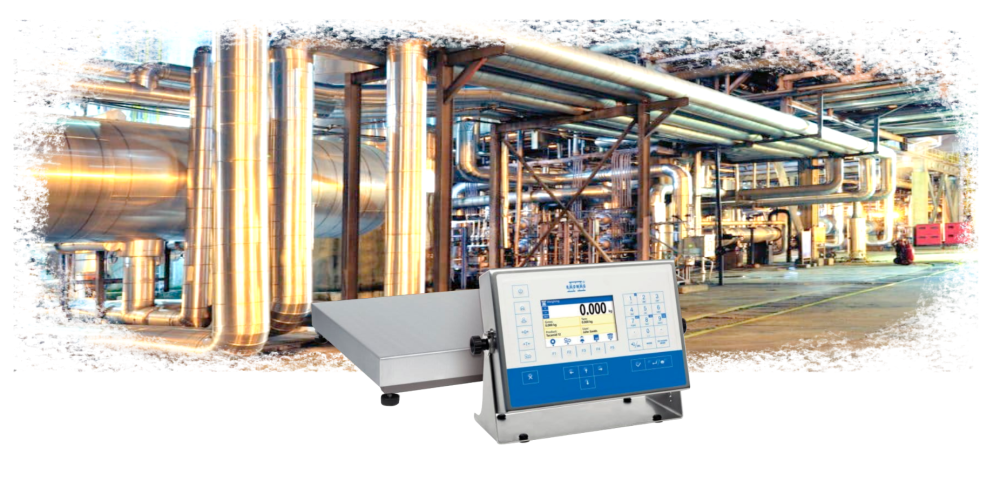

High Resolution Scales

The high-resolution scales are built for applications where standard precision is not enough, delivering exceptional readability across higher weighing capacities. These models bridge the gap between analytical balances and industrial scales, making them ideal for users who require fine resolution while working with heavier loads. Differences between models typically include maximum capacity, resolution ratio, and advanced features such as environmental monitoring and data integration, which become critical in regulated or research-driven environments.

Advisers with extensive professional experience
knowledgeable in laboratory processes 1-800-463-4363

Q&A

When does a microbalance become necessary instead of an analytical balance?

Microbalances are commonly used for filter weighing, pharmaceutical formulation, emissions testing, materials science, calibration laboratories, forensic analysis, and advanced research applications where sample masses may be only a few milligrams—or even less.

One advantage of Radwag microbalances and ultra-microbalances is that they often include published minimum weight, repeatability, and uncertainty-related specifications. This allows laboratories to make a more objective decision about when an analytical balance is no longer capable of meeting measurement requirements.

Analytical Balance vs Microbalance

Characteristic	Analytical Balance	Microbalance
Typical Readability	0.1 mg (0.0001 g)	1–10 µg (0.000001–0.00001 g)
Typical Sample Size	Tens of milligrams to hundreds of grams	Milligrams and below
Environmental Sensitivity	High	Extremely High
Air Draft Sensitivity	Significant	Critical
Vibration Sensitivity	Significant	Critical
Typical Applications	Routine laboratory weighing	Research, calibration, filter weighing, and pharmaceuticals

than display readability alone. In practice, laboratories determine minimum weight through calibration, repeatability testing, SOP requirements, and applicable standards such as USP where relevant. The minimum weight should be documented and respected; samples below that threshold should be weighed on a more suitable balance or by using a different method.

How do laboratories determine the minimum weight that can be measured reliably?

A common misconception is that readability alone determines weighing capability. In reality, a balance may display several decimal places while still being unsuitable for very small samples. As sample mass decreases, the balance's uncertainty becomes a larger percentage of the result, reducing confidence in the measurement.

For this reason, laboratories often calculate or verify a minimum weight below which measurements are no longer considered sufficiently reliable. This provides a more meaningful measure of weighing performance than readability alone.

In practice, minimum weight is established through calibration data, repeatability testing, laboratory SOPs, risk assessments, and applicable standards such as USP when required. Once determined, the minimum weight should be documented and followed as part of the laboratory's quality system.

Balance Specification	Sample Weight	Reliable?	Reason
0.1 mg analytical balance	50 g sample	Yes	Balance uncertainty is negligible relative to sample mass
0.1 mg analytical balance	100 mg sample	Usually Yes	Uncertainty remains a small percentage of the result
0.1 mg analytical balance	5 mg sample	Often No	Relative uncertainty may become excessive
1 µg microbalance	5 mg sample	Yes	Designed for very small sample measurements
1 µg microbalance	100 µg sample	Often Yes	Appropriate for microgram-level work
Industrial bench scale	10 g sample	Often No	Readability and repeatability may be insufficient

How can laboratories reduce measurement uncertainty in routine weighing applications?

Measurement uncertainty can be reduced by improving three key areas: the instrument, the environment, and the weighing procedure. Instrument-related improvements may include selecting a balance with better repeatability, lower linearity error, appropriate weighing capacity, internal adjustment capabilities, and a weighing chamber suited to the application.

Vibration, air drafts, temperature fluctuations, humidity changes, and static electricity can all contribute to measurement variability. Finally, the weighing method should be standardized. Consistent sample handling, proper centring of the load, routine performance verification, calibrated test weights, and adequate warm-up time all help reduce uncertainty and improve repeatability.

Situation	Higher Uncertainty	Lower Uncertainty
Balance location	Near doors and foot traffic	Dedicated weighing area
Work surface	Lightweight desk	Stable laboratory bench or weighing table
Sample placement	Random positioning	Consistent centering on the pan
Balance warm-up	Used immediately after startup	Allowed to stabilize before use
Test weights	Unverified weights	Certified and calibrated weights
Operator technique	Different methods between users	Standardized SOP followed by all operators

What factors have the greatest impact on ultra-low weighing uncertainty?

The largest contributors to uncertainty typically include air movement, vibration, electrostatic charges, temperature gradients, sample handling practices, moisture absorption or evaporation, buoyancy effects, and the quality of calibration standards. At this level, disturbances that would be insignificant in routine laboratory weighing can become major sources of measurement error.

Radwag places particular emphasis on repeatability, stabilization time, minimum weight, draft-shield performance, and environmental control in its microbalance and ultra-microbalance systems because these factors directly affect achievable uncertainty. The objective is not simply to provide more decimal places, but to produce reliable and defensible measurements at extremely low mass levels.

For laboratories working at the microgram level, the balance should be viewed as part of a complete measurement system that includes environmental controls, validated procedures, trained operators, certified calibration standards, and ongoing performance verification.

Factor	Example of Its Impact
Air movement	A nearby HVAC vent causes readings to fluctuate by several micrograms.
Vibration	Foot traffic or nearby equipment increases stabilization time and reduces repeatability.
Static electricity	A plastic weighing vessel appears to gain or lose mass due to electrostatic attraction.
Temperature gradients	A warm sample generates air currents that affect the measurement.
Moisture absorption	Hygroscopic powders gain mass while exposed to ambient humidity.
Sample evaporation	Solvents lose mass during the weighing process.
Calibration standards	Poor-quality or uncertified weights increase measurement uncertainty.
Operator technique	Different handling methods produce inconsistent results between users.

What features justify the higher cost of premium laboratory balances?

Key premium features can include improved repeatability, lower minimum weight, faster stabilization times, automatic internal adjustment, advanced draft-shield design, environmental monitoring, user management, audit trails, data integrity controls, specialized software, and microbalance or ultra-microbalance performance.

In pharmaceutical manufacturing, research, calibration, filter weighing, environmental testing, and ultra-low mass applications, the cost of unreliable measurements, failed audits, product recalls, or repeated testing can far exceed the difference in purchase price.

Scenario	Premium Balance Justified?	Reason
Weighing 50 g samples in a teaching lab	Usually No	Standard balance performance is sufficient
Measuring particulate filters for emissions testing	Yes	Microgram-level uncertainty is critical
Pharmaceutical formulation work	Yes	Compliance and measurement confidence are essential
Routine warehouse weighing	No	Advanced features provide little additional value
Calibration of reference standards	Yes	Low uncertainty requirements justify the investment

At what point does measurement uncertainty become more important than readability?

As soon as the measurement must support a decision, specification, or regulated result. Readability may show fine increments, but if repeatability, calibration uncertainty, environmental effects, and method variability are not fully controlled, the extra digits are not meaningful. This is especially true for small sample masses, microbalance work, pharmaceutical weighing, and applications where minimum weight matters. The practical question is not 'How many decimals can it display?' but 'Can this balance measure my smallest required sample within my allowable uncertainty?'

When Uncertainty Becomes Critical

Measurement uncertainty becomes the primary consideration when:

Results determine pass/fail decisions
Regulatory compliance is involved
Sample masses approach the minimum weight
Measurements must be traceable and auditable
Calibration certificates are required
Pharmaceutical or research protocols specify uncertainty limits
Microgram-level measurements are being performed
