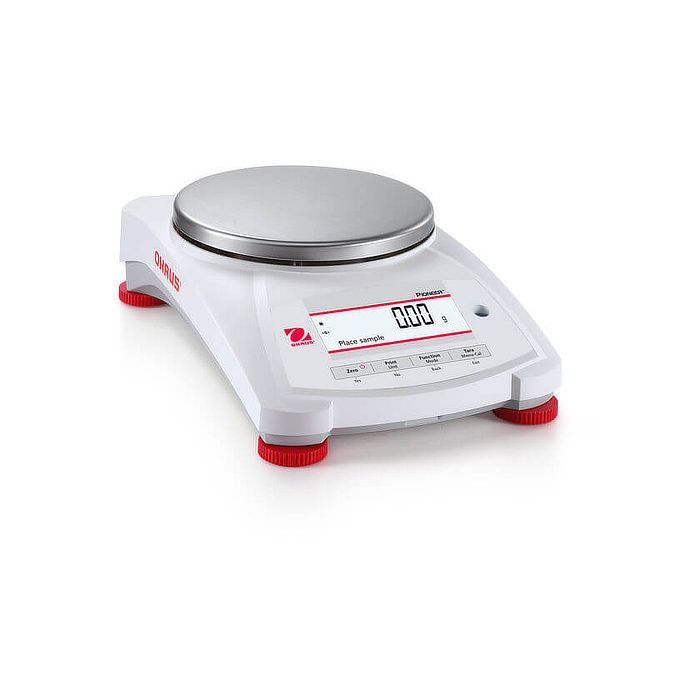

Precision Balance PX2201/E
- Maximum Capacity: 2,200 g
- Readability: 0.1 g
- Pan Size: 180 mm
- Item Number:: 30430059
The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability.
It suits applications across laboratory, industrial, and educational environments. The PX remains budget-friendly, with an intuitive setup that features a secondary line display for extra details, and USB and RS232 connections to facilitate straightforward communication.
Trusted Performance and Reviews
Independent lab studies confirm the PX maintains accuracy within ±0.002 g under variable conditions. Industry reviews highlight its reliability and ease of integration into automated workflows, while users frequently praise its clear display and intuitive operation.
Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation
AC adapter (included)
Communication
RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction
Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages.
Specifications
| Maximum Capacity | 160 g |
| Readability | 0.001 g |
| Pan Size | 120 mm |
| Internal Calibration | InCal™ - Semi Automatic |
| Draftshield | Included |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | USB; RS232 |
| Dimensions | 321 mm x 309 mm x 209 mm (LxHxW) |
| Display | 2-Line LCD with Backlight |
| In-Use Cover | Included |
| Legal for Trade | No |
| Linearity ± | 0.002 g |
| Minimum Weight (USP, 0.1%, typical) | 2 g |
| Net Weight | 10 lb (4.5 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.001 g |
| Stabilization Time | 2 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Singapore Tael; Pennyweight; Ounce Troy; Kilogram; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Ounce; Carat |
| Working Environment | operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing) |
Q&A
What is the accuracy of the Pioneer PX?
The Pioneer PX provides a typical repeatability of 0.001 g and linearity within ±0.002 g.
Can the PX be used for animal weighing?
Yes, the PX supports animal weighing and other applications such as parts counting and density determination.
Does the PX support external communication?
Yes, it includes USB and RS232 connections and allows GLP/GMP data output.
Is the PX suitable for educational labs?
Absolutely, its intuitive interface, secondary display, and robust construction make it ideal for educational and industrial environments.
Does it include internal calibration?
Yes, the PX features InCal™ semi-automatic internal calibration for accurate results without external standards.
Q&A
What is this product primarily used for?
This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.
Which industries benefit most from this equipment?
Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.
How does it compare to similar models?
It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
| Brands | Ohaus |
|---|---|
| Price | CA$1,474.07 |
