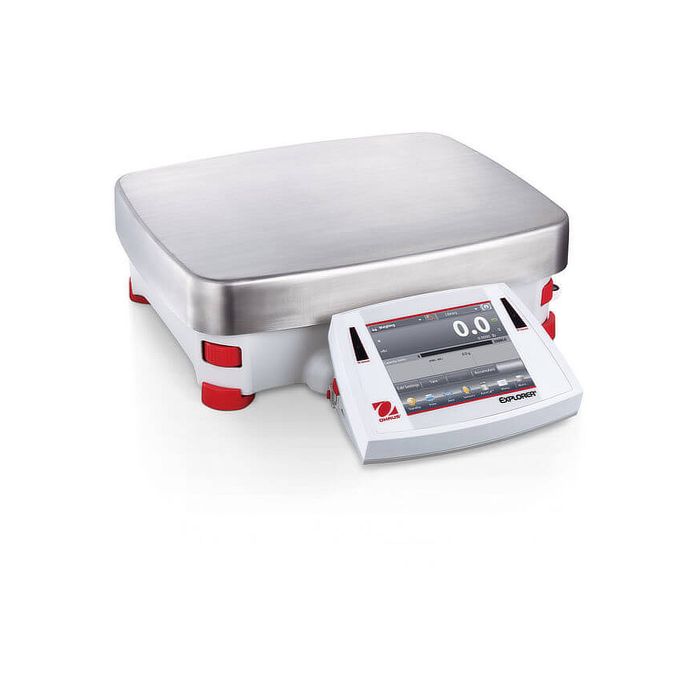

Ohaus Explorer Precision Balance EX24001 AM
- Maximum Capacity: 24,000 g
- Readability: 0.1 g
- Pan Size: 14.8 in x 12.2 in (377 mm x 311 mm)
- Item Number: 30057100
OHAUS Explorer High Capacity balances provide unmatched functionality in a line of high-performance, high-capacity balances unlike any other on the market! This smart and intuitive balance simplifies even the most complex high-capacity laboratory measurements..
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC Adapter (included) or rechargeable battery (accessory sold separately)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan
| Maximum Capacity | 24,000 g |
| Readability | 0.1 g |
| Pan Size | 14.8 in x 12.2 in (377 mm x 311 mm) |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | — |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | 10 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory) USB (Included) RS232 (Included) |
| Dimensions | 17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) (LxHxW) |
| Display | Full-color 5.7 in VGA, touch screen |
| In-Use Cover | Included |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.2 g |
| Minimum Weight (USP, 0.1%, typical) | 210 g |
| Net Weight | 22 lb (10 kg) |
| Pan Construction | Stainless Steel |
| Power | Rechargeable Battery (Not Included) AC Power (Included) |
| Repeatability, typical | 0.1 g |
| Stabilization Time | 1 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Singapore Tael Ounce Troy Pennyweight Kilogram Grain Tical Custom Milligram Newton Momme Taiwan Tael Baht Gram Hong Kong Tael Pound Tola Mesghal Carat Ounce |
| Working Environment | 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing) |
Q&A
What is this product primarily used for?
This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.
Which industries benefit most from this equipment?
Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.
How does it compare to similar models?
It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
