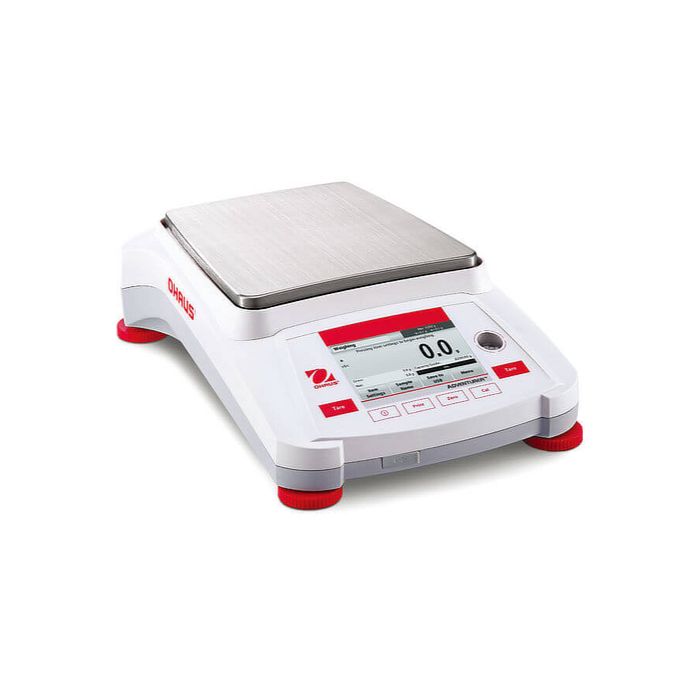

Precision Balance AX8201N/E
- Maximum Capacity: 8,200 g
- Readability: 0.1 g
- Readability (Certified): 1 g
- Item Number:: 30100639
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities.
With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Why Choose the OHAUS Adventurer?
Backed by industry reviews, the OHAUS Adventurer is praised for its fast stabilization, intuitive touchscreen interface, and robust construction. Scientific studies highlight its reliability in precise laboratory measurements, with consistent results across repeated trials. Popular customer feedback often emphasizes its versatility and ease of use in both lab and industrial settings.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing.
Display
4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness.
Operation
AC adapter (included).
Communication
RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover.
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages.
For different needs in laboratory and industrial settings
Consider incorporating complementary Ohaus weighing instruments such as the Adventurer Precision Balances, which offer touchscreen operation and comprehensive GLP/GMP data output for routine measurement tasks across research and production environments. For applications requiring portable and durable general weighing solutions, the NAVIGATOR® Portable Balances deliver robust performance with rapid stabilization and overload protection, ideal for workshops and QC stations. When compact footprint and simple operation are priorities, the Portable Balances Scout SPX series provides reliable industrial‑grade weighing with flexible power options and advanced measurement modes.
Q&A
How fast does the OHAUS Adventurer stabilize measurements?
Typical stabilization time is around 1.5 seconds, ensuring quick and efficient weighing for routine tasks.
Can multiple users operate the Adventurer while maintaining compliance?
Yes, it supports three-level user management, fulfilling GLP/GMP compliance requirements for multiple operators.
Is it suitable for density and formulation measurements?
Absolutely, the Adventurer includes applications for density determination and formulation, making it versatile for lab and industrial use.
What are the connectivity options for data transfer?
Dual USB ports (host and device) and an RS-232 interface allow seamless connection to printers, computers, and lab systems.
Does it include calibration and security features?
Yes, it features a calibration lock, selectable span calibration points, and a software lockout menu for secure and accurate operation.
Specifications
| Maximum Capacity | 8,200 g |
| Readability | 0.1 g |
| Readability (Certified) | 1 g |
| Pan Size | 7.7 in x 6.9 in (195 mm x 175 mm) |
| Internal Calibration | Not Applicable |
| Draftshield | — |
| Accuracy (Class) | II |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | USB; RS232 (Included); USB Host |
| Dimensions | 13.93 in x 3.94 in x 9.05 in (354 mm x 100 mm x 230 mm) (LxHxW) |
| Display | High resolution full colour VGA touch display |
| In-Use Cover | Included |
| Legal for Trade | NTEP Certified |
| Linearity ± | 0.2 g |
| Minimum Weight (USP, 0.1%, typical) | 200 g |
| Net Weight | 8.4 lb (3.8 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.1 g |
| Stabilization Time | 1.5 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce |
| Working Environment | 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
| Brands | Ohaus |
|---|---|
| Price | CA$2,542.76 |
