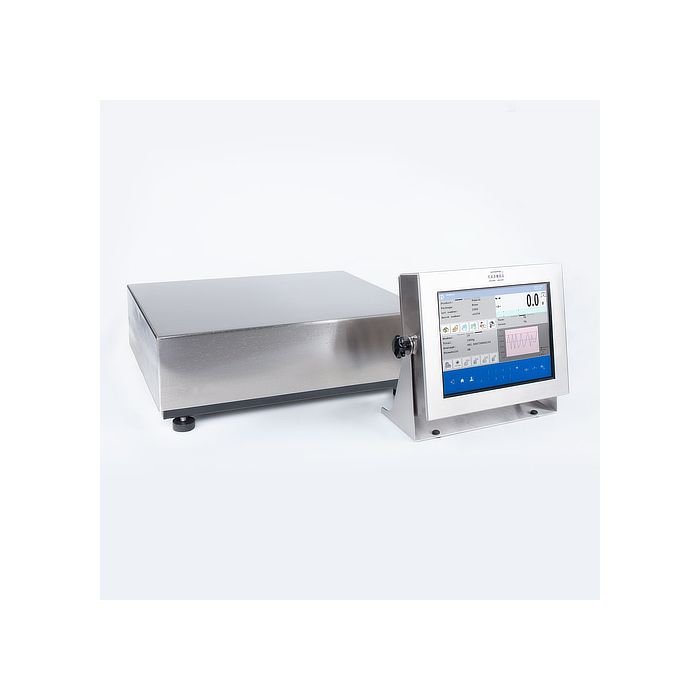

HY10.150.HRP.H High Resolution Scale
The HRP high resolution scales are very robust. Their platforms are recognised to have an IP 67 level of protection. They feature additional sealing elements to protect against dust, dirt, and moisture and can thus be cleaned with a pressure washer.
Maximum Robustness
The HRP high-resolution scales are engineered for exceptional durability. Their weighing platforms are certified to IP67 standards, ensuring resistance against dust, dirt, and water ingress. With reinforced sealing elements, these scales can withstand rigorous cleaning, including pressure washing, without compromising performance.
Scientific studies and industry reviews highlight the precision and reliability of HRP scales in laboratory and industrial settings. Peer-reviewed articles and customer testimonials emphasize their accuracy in high-demand environments, from quality control to research laboratories. Widely adopted in manufacturing, research, and logistics, users consistently report long-term durability, reliable repeatability, and ease of integration into automated systems.
Reliable Protection
The HRP high-resolution scales feature additional sealing elements that protect against dust, dirt, and moisture, ensuring they maintain optimal performance even in challenging environments. These scales are suitable for both industrial and laboratory applications where high standards of cleanliness and safety are required.
Choose a Terminal
HRP high-resolution scales can operate with one of two industrial terminals: PUE 7.1 and PUE HY10.
PUE 7.1 Terminal
The PUE 7.1 terminal features:
- 5.7-inch color resistive display
- Touch-sensitive keyboard
- ABS plastic housing
- IP43 protection rating
- Communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN / 4 OUT, Wi-Fi®
- Optional additional modules: additional A/D converter module DP6
PUE HY10 Terminal
The PUE HY10 terminal delivers:
- 10.1-inch color graphic display
- Touchscreen keyboard
- Stainless steel housing
- IP68/69 degree of protection
- Communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN / 4 OUT
- Optional additional modules: Wi-Fi®, RS485, Profibus, Profinet, analog output module, 12 IN / 12 OUT
Datasheet
| Maximum capacity [Max] | 150 kg |
| Minimum load | 50 g |
| Preload range | 30 kg |
| Readability [d] | 1 g |
| Tare range | -150 kg |
| Repeatability | 0.6 g |
| Linearity | ±3 g |
| Stabilization time | 3 s |
| Adjustment | internal (automatic) |
| Display | 10.1″ graphic colour touchscreen |
| Weighing pan dimensions | 500×400 mm |
| Packaging dimensions | 610×710×505 mm |
| Net weight | 71.5 kg |
| Gross weight | 119 kg |
| Protection class | IP 66 / 67 construction, IP 66 / 67 / 69 terminal |
| Construction | Stainless steel AISI304 |
| Weighing pan material | Stainless steel AISI304 |
| Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital) |
| Optional interfaces | Module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V), 12 IN / 12 OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC) |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Operating temperature | +10 – +40 °C |
| Relative humidity | 15% – 80% |
Q&A
What is the maximum weight the HRP scale can measure?
The HRP scale can measure up to 150 kg with a readability of 1 g.
Are these scales suitable for wet or dusty environments?
Yes, the scales are IP67 rated and feature additional sealing elements that protect against dust and moisture, making them suitable for demanding environments.
Can I use a touchscreen terminal with these scales?
Yes, the HRP scales are compatible with the PUE HY10 touchscreen terminal, which includes a 10.1-inch color graphic display and stainless steel housing.
What communication options are available?
The scales support multiple interfaces including RS232, USB-A, Ethernet, and optional modules such as Wi-Fi, Profibus, Profinet, and analog output.
Is calibration automatic?
Yes, the HRP scales feature internal automatic adjustment for precise measurements without manual calibration.
Q&A
What is this product primarily used for?
This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.
Which industries benefit most from this equipment?
Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.
How does it compare to similar models?
It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
