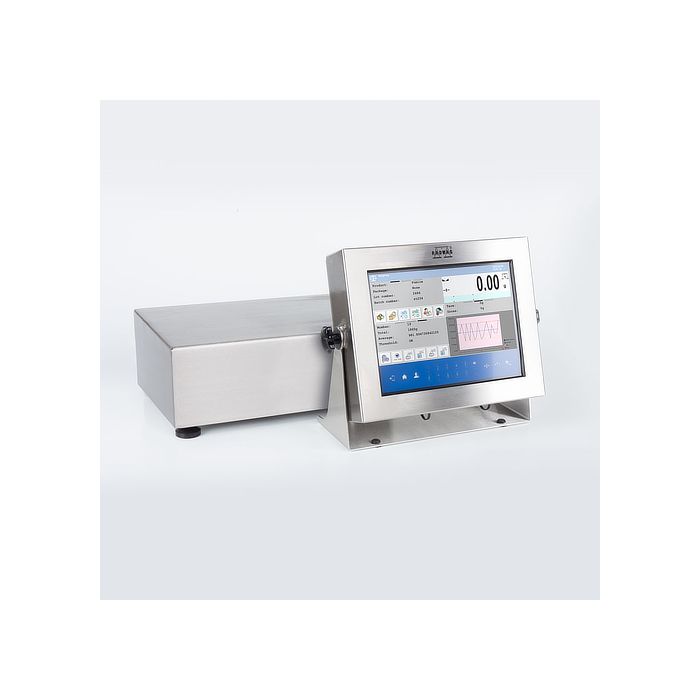

HY10.10.HRP.H High Resolution Scale
The HRP high resolution scales are very robust. Their platforms are recognised to have an IP 67 level of protection. They feature additional sealing elements to protect against dust, dirt, and moisture and can thus be cleaned with a pressure washer.
Maximum Robustness
The HRP high resolution scales are very robust. Their platforms are recognised to have an IP 67 level of protection. They feature additional sealing elements to protect against dust, dirt, and moisture and can thus be cleaned with a pressure washer.
Trusted Performance and Reviews
Independent studies highlight HRP scales’ high precision and reliability in industrial environments. Verified industry reviews note exceptional durability and consistent readings over long-term use. Customers frequently praise the scales for ease of use and accurate measurements, even in challenging conditions.
Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
PUE 7.1 Terminal Features
The PUE 7.1 terminal has:
- 5.7-inch color resistive display
- a touch-sensitive keyboard
- ABS plastic housing
- IP 43 protection rating
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®
- optional additional modules: additional A/D converter module DP6.
PUE HY10 Terminal Features
The PUE HY10 terminal features:
- 10.1-inch color graphic display
- touchscreen keyboard
- stainless steel housing
- IP 68/69 degree of protection
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
- optional additional modules: Wi-Fi®, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.
To complement the industrial precision of the HY1010HRPH high resolution scale and support a broader range of weighing and measurement tasks in professional environments, consider additional high‑performance instruments from our product lineup. The EX423 Explorer precision balance offers robust high‑capacity weighing with consistent repeatability and data management features suited for demanding QC and formulation workflows.
For industrial bench‑scale applications requiring high resolution and rugged construction, the high capacity precision balances deliver large‑capacity performance with reliable stabilization and versatile weighing modes. Additionally, the NAVIGATOR® portable balances provide dependable general‑purpose weighing with fast response and durable design for production and laboratory use.
Q&A
What is this product primarily used for?
This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.
Which industries benefit most from this equipment?
Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.
How does it compare to similar models?
It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
Datasheet
| Maximum capacity [Max] |
10 kg |
| Minimum load |
5 g |
| Preload range |
4 kg |
| Readability [d] |
0.02 g |
| Tare range |
-10 kg |
| Repeatability |
0.03 g |
| Linearity |
±0.06 g |
| Stabilization time |
2 s |
| Adjustment |
internal (automatic) |
| Display |
10.1″ graphic colour touchscreen |
| Weighing pan dimensions |
360×280 mm |
| Net weight |
24.7 kg |
| Gross weight |
28.7 kg |
| Protection class |
IP 66 / 67 construction, IP 66 / 67 / 69 terminal |
| Construction |
Stainless steel AISI304 |
| Weighing pan material |
Stainless steel AISI304 |
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital) |
| Optional interfaces |
module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V), 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC) |
| Power supply |
100 – 240 V AC 50/60 Hz |
| Operating temperature |
+10 – +40 °C |
| Relative humidity |
15% – 80% |
| Brands | Radwag |
|---|---|
| Price | CA$13,141.17 |
