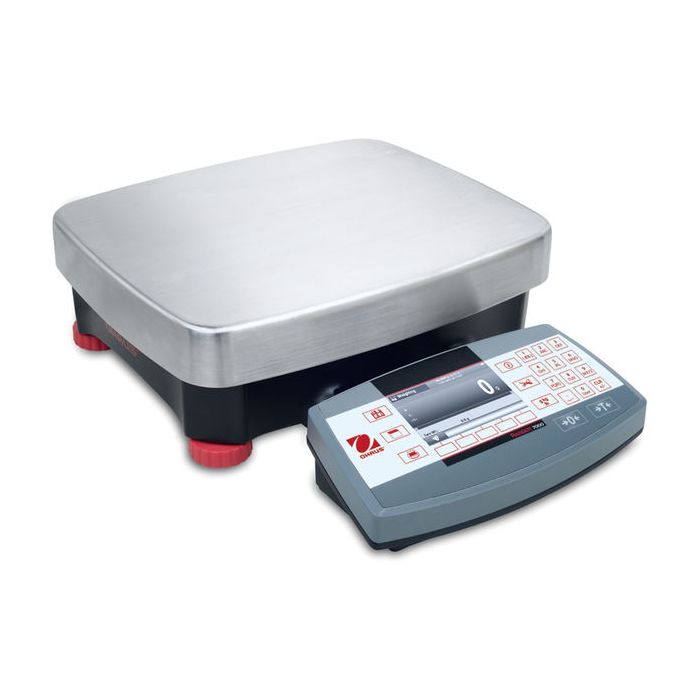

Ranger 7000 Compact Scale, R71MD15 AM
- Maximum Capacity: 30 lb (15 kg)
- Readability: 0.0005 lb (0.2 g)
- Readability (Certified): 0.005 lb (2 g)
- Item Number: 30070311
For the Ranger 7000, one clear throughline stands out: it delivers the finest of every clever feature that marks OHAUS industrial products as the ideal instruments for your most demanding weighing tasks.
Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.
Applications
Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
Display
4.3" (109 mm) Full-color WQVGA graphic display with user-controlled brightness
Operation
AC power (included) or rechargeable battery (accessory sold separately)
Communication
Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
Construction
Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
Design Features
Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare
Frequently Asked Questions
What makes the Ranger 7000 Compact Scale well suited for industrial use?
The Ranger 7000 Compact Scale features a rugged IP54‑rated metal housing and sealed indicator, making it robust for heavy‑duty industrial environments while delivering reliable weighing performance.What is the maximum capacity and precision of the R71MD15 AM model?
The R71MD15 AM model has a maximum capacity of 15 kg (30 lb) with high display resolution (0.2 g / 0.0005 lb) and certified readability for trade‑approved weighing.What connectivity and data features does the Ranger 7000 offer?
It includes standard USB and RS‑232 ports, with optional secondary RS‑232 or Ethernet, enabling easy data export and integration with printers, PCs, barcode scanners, and external systems.Does the Ranger 7000 support multiple weighing and application modes?
Yes, this scale features up to 10 advanced modes such as parts counting, percent weighing, check weighing, dynamic weighing, formulation, and density determination to handle complex applications.Is the Ranger 7000 certified for trade use in Canada?
Yes, the R71MD15 AM version is approved under Measurement Canada and other legal‑for‑trade standards, ensuring compliance for commercial weighing operations.| Maximum Capacity | 30 lb (15 kg) |
| Readability | 0.0005 lb (0.2 g) |
| Readability (Certified) | 0.005 lb (2 g) |
| Platform Size (LxW) | 12.2 in x 14.8 in (311 mm x 377 mm) |
| Battery Life | 12 Hours with Rechargeable Battery |
| Second Scale Input | Yes |
| Communication | 2nd RS232 (Available as an Accessory) Ethernet (Available as an Accessory) USB (Included) RS232 (Included) |
| Dimensions | 18.4 in x 5 in x 14.9 in (467 mm x 128 mm x 377 mm) (LxHxW) |
| Display | 4.3’’/10.9cm TFT Graphic LCD |
| Internal Calibration | Not Applicable |
| In-Use Cover | Included |
| Legal for Trade | NTEP Certified Measurement Canada Approved |
| Linearity ± | 0.4 g |
| Net Weight | 21.8 lb (9.9 kg) |
| Outputs | 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Power | Rechargeable Battery (Not Included) AC Power (Included) |
| Protection Rating | IP54 |
| Tare Range | To capacity by subtraction |
| Transportation Case | Not Applicable |
| Units of Measurement | Gram Kilogram Pound Ounce Custom Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
Q&A
What is this product primarily used for?
This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.
Which industries benefit most from this equipment?
Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.
How does it compare to similar models?
It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
| Brands | Ohaus |
|---|---|
| Price | CA$3,047.24 |
