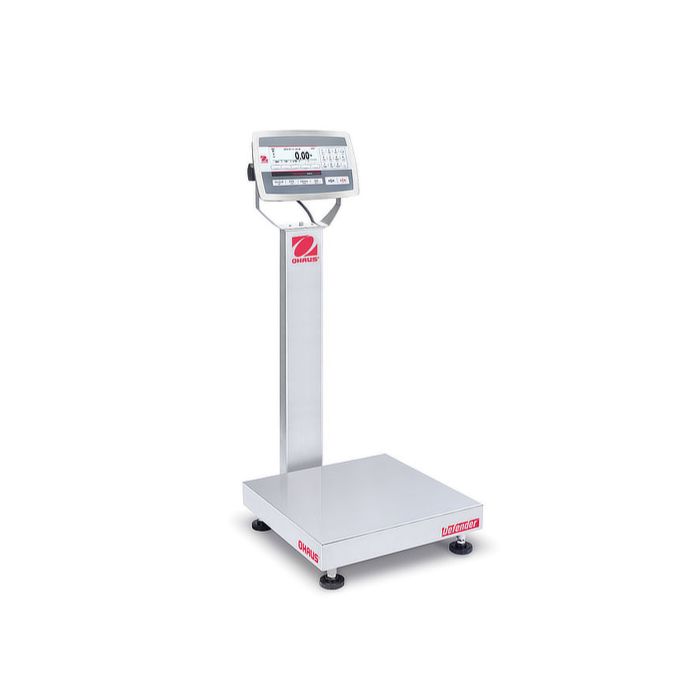

Defender 5000 Bench Scale, D52XW125RQL2

The OHAUS next-generation Defender 5000 Series multifunctional bench scale is perfect for a wide range of uses, including production, packaging, inventory, and shipping.

Durably constructed and packed with high-end features like fully configurable print output, GMP/GLP data output, robust library and user management, and versatile connectivity options — the Defender 5000 is built to streamline demanding industrial and commercial tasks.

Maximum Capacity	250 lb (125 kg)
Readability	0.01 lb (5 g)
Readability (Certified)	0.05 lb (20 g)
Item Number:	30461696

Applications

• Weighing, Parts Counting, Percent Weighing, Check Weighing
• Dynamic Weighing (Display Hold)
• Display
• Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

Operation

Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)

Communication

Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock

Construction

ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet

Design Features

User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare.

Maximum Capacity	250 lb (125 kg)
Readability	0.01 lb (5 g)
Readability (Certified)	0.05 lb (20 g)
Platform Size (LxW)	18 in x 18 in (457 mm x 457 mm)
Legal for Trade	NTEP Certified;  Measurement Canada Approved
Power	Rechargeable Battery (Not Included);  AC Power (Included)
Battery Life	20 Hours with Rechargeable Battery
Communication	Ethernet (Available as an Accessory);  2nd RS232/RS485/USB (available as an accessory);  RS232 (Included);  USB Host (Available as an Accessory);  WiFi/Bluetooth (available as an accessory)
Dimensions	24.7 in x 36.8 in x 18 in (627 mm x 934 mm x 457 mm) (LxHxW)
Display	Dot matrix LCD with white LED backlight
Net Weight	39.7 lb (18 kg)
Outputs	4 - 20mA;  2 In/4 Out digital I/O
Platform Construction	Stainless Steel
Protection Rating	Not Applicable
Second Scale Input	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Metric Tons;  Gram;  Kilogram;  Pound;  Tonne;  Custom;  Ounce;  Pound:Ounce
Working Environment	14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)

Q&A

What is this product primarily used for?

This instrument is commonly used in professional and industrial environments where dependable measurement accuracy and repeatability are essential.

Which industries benefit most from this equipment?

Laboratories, manufacturing facilities, quality control departments, and technical service providers frequently rely on this type of instrument for consistent results.

How does it compare to similar models?

It stands out for its balance of durability, user-friendly operation, and reliable performance in demanding environments.
